HANDHELD BARCODE SCANNER
Model No：SF580
● 4.5 inch HD screen · Quad -core 2.0GHz · 4G full Netcom
● Android 9.0, IP66 Standard
● Honeywell/Newland 1D&2D Barcode Reader for data collection
● Temperature Measurement Support
● Super Pocket, Rugged Industrial -leading Design
● 8MP HD camera, Support auto focus
-
ANDROID 9.0
-
QUAD-CORE 2.0GHz
-
4.5INCH DISPLAY
-
5V/4200mAh
-
1P66
-
1D/2D BARCODE SCANNING
-
NFC SUPPORT 14443A /B protocol
-
RFID Support (Optional)
-
8MP Auto-focus
-
2+16GB/3+32GB
SFT SF580 Handheld Barcode Scanner is with Android 9.0 OS and high-performance processor Quad-core 2.0 GHz, 2+16GB/3+32GB It has immensely diverse functionality features for barcode scanning, NFC, and temperature measurement. Meanwhile, with longer battery life, higher performance, and characteristic rugged robustness of IP66 standard, SF580 is the ideal device to be extensively deployed in harsh circumstances like logistic, healthcare, census and warehouses.
4.5 Inches display with 480*854 resolution; Rugged dual touch capacitive touch panel.
High-end performance with super pocket design.

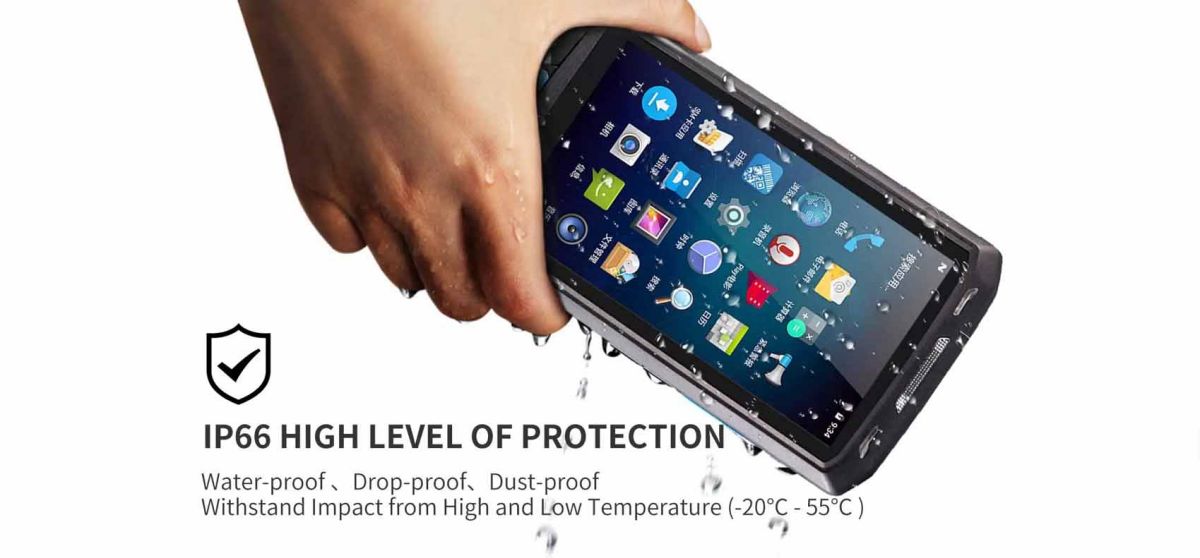

Industrial-leading design，IP66 standard, water and dust proof,
Despite Heat and Cold, Working temperate -20°C to 50°C suitable working for all harsh environments.
Up to 4500 mAh rechargeable and replaceable battery satisfy your whole days work.
Also supports flash and docking charging.
Efficient 1D and 2D barcode laser scanner (Honeywell, Zebra or Newland) built-in to enable decoding different kinds of codes with high accuracy and fastest speed.
Optional Built in high sensitive NFC scanner supports protocol ISO14443A/B Its high security, stable and connectivity.
8MP Camera auto focus, flash and anti-shake, temperature measurement scanner as optional.
SF580 safety box package(1PC PDA*1PC adapter *1pc cable)
Widely application that satisfy your life much convenient.
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
|
Physical Characteristics |
||
|
Dimensions |
160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67in. |
|
|
Weight |
287g / 10.12oz.(device with battery) 297g / 10.47oz.(device with battery, Fingerprint / Volume Measurement / Built-in UHF) |
|
|
Keypad |
1 power key, 2 scan keys, 2 volume keys |
|
|
Battery |
Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh ) |
|
|
5200mAh optional pistol battery, support QC3.0 and RTC |
||
|
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) |
||
|
Continuous use: over 12 hours (depending on user environment) |
||
|
Charging time: 2.5 hours (charge device by standard adaptor and USB cable) |
||
|
Display |
5.5-inch high definition full display (18:9), IPS 1440 x 720 |
|
|
Touch Panel |
Multi-touch panel, gloves and wet hands supported |
|
|
Sensor |
Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
|
|
Notification |
Sound, LED indicator, vibrator |
|
|
Audio |
2 microphones, 1 for noise cancellation; 1 speaker; receiver |
|
|
Card slot |
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
|
|
Interfaces |
USB Type-C, USB 3.1, OTG, extended thimble; |
|
|
Performance |
||
|
CPU |
Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz |
|
|
RAM+ROM |
3GB + 32GB / 4GB + 64GB |
|
|
Expansion |
Supports up to 128GB Micro SD card |
|
|
Developing Environment |
||
|
Operating System |
Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility |
|
|
SDK |
SFT Software Development Kit |
|
|
Language |
Java |
|
|
Tool |
Eclipse / Android Studio |
|
|
User Environment |
||
|
Operating Temp. |
-4oF to 122oF / -20 ℃ to +50 ℃ |
|
|
Storage Temp. |
-40oF to 158oF / -40 ℃ to +70 ℃ |
|
|
Humidity |
5% RH – 95% RH non condensing |
|
|
Drop Specification |
Multiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the operating temperature range |
|
|
Multiple 2.4m / 7.87ft. drops (at least 20 times) to the concrete after installed rubber boots |
||
|
Tumble Specification |
1000 x 0.5m / 1.64ft. falls at room temperature |
|
|
Sealing |
IP65 per IEC sealing specifications |
|
|
ESD |
± 15KV air discharge, ± 8KV conductive discharge |
|
|
Communication |
||
|
Vo-LTE |
Support Vo-LTE HD video voice call |
|
|
Bluetooth |
Bluetooth 5.1 |
|
|
GNSS |
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
|
|
WLAN |
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; |
|
|
Fast roaming: PMKID caching, 802.11r, OKC |
||
|
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations |
||
|
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
||
|
WWAN (Europe, Asia) |
2G: 850/900/1800/1900 MHz |
|
|
3G: CDMA EVDO: BC0 |
||
|
WCDMA: 850/900/1900/2100MHz |
||
|
TD-SCDMA: A/F(B34/B39) |
||
|
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
||
|
WWAN(America) |
2G: 850/900/1800/1900MHz |
|
|
3G: 850/900/1900/2100MHz |
||
|
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38 |
||
|
Data Collection |
||
|
Camera |
||
|
Rear Camera |
Rear 13MP Autofocus with flash |
|
|
NFC |
||
|
Frequency |
13.56MHz |
|
|
Protocol |
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
|
|
Chips |
M1 card (S50, S70), CPU card, NFC tags, etc. |
|
|
Range |
2-4cm |
|
|
Barcode Scanning (Optional) |
||
|
2D Scanner |
Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S; CM60 |
|
|
1D Symbologies |
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
|
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. |
|
|
UHF |
||
|
*For detailed specification, please check SF509 UHF part |
||
|
Fingerprint |
||
|
Optional 1 |
||
|
Sensor |
TCS1 |
|
|
Sensing Area (mm) |
12.8 × 18.0 |
|
|
Resolution (dpi) |
508 dpi, 8-bit greylevel |
|
|
Certifications |
FIPS 201, STQC |
|
|
Format Extraction |
ISO 19794, WSQ, ANSI 378, JPEG2000 |
|
|
Fake Finger Detection |
Support by SDK |
|
|
Security |
AES, DES key encryption of the host communication channel |
|
|
Optional 2 |
||
|
Sensor |
TLK1NC02 |
|
|
Sensing Area (mm) |
14.0 X 22.0 |
|
|
Resolution (dpi) |
508dpi, 256 greylevel |
|
|
Certifications |
FIPS 201, FBI |
|
|
Format Extraction |
ISO19794, WSQ, ANSI 378, JPEG2000 |
|
|
Fake Finger Detection |
Support by SDK |
|
|
Security |
AES, DES key encryption of the host communication channel |
|
|
Volume Measurement (Optional) |
||
|
Sensor |
IRS1645C |
|
|
Measurement Error |
< 5% |
|
|
Module |
MD101D |
|
|
Field of view Angle |
D71°/H60°/V45° |
|
|
Measurement speed |
2s / piece |
|
|
Measured distance |
40cm-4m |
|
|
* Volume Measurement version does not support pistol |
||
|
Optional accessories(See details in Accessory Guide) |
||
|
Separate handle with one button；Handle + battery (handle battery 5200mAh, one button) ; |
||
|
UHF back clip + handle (5200mAh, one button) ; Wrist Strap; Rubber Bumper; Charging Cradle |
||
|
UHF1 (Optional, SF510 UHF Back Clip) |
||
|
Engine |
CM710-1 module based on Impinj E710CM2000-1 module based on Impinj Indy R2000 |
|
|
Frequency |
865-868MHz / 920-925MHz / 902-928MHz |
|
|
Protocol |
EPC C1 GEN2 / ISO18000-6C |
|
|
Antenna |
Circular Polarized Antenna (4dBi) |
|
|
Power |
1W (30dBm, +5dBm to +30dBm adjustable) |
|
|
2W Optional (33dBm, for Latin America, etc.) |
||
|
Max Read Range |
Impinj E710 chip:28m (Impinj MR6 tag, size 70 x 15mm)28m (Impinj M750 tag, size 70 x 15mm) 32m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
|
|
Impinj R2000 chip:22m (Impinj MR6 tag, size 70 x 15mm)24m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
||
|
Fastest Read Rate |
1150+ tags/sec |
|
|
CommunicationMode |
Pin Connector |
|
|
UHF2 (Optional, SF510+ R6 UHF Sled) |
||
|
Engine |
CM710-1 module based on Impinj E710CM2000-1 module based on Impinj Indy R2000 |
|
|
Frequency |
865-868MHz / 920-925MHz / 902-928MHz |
|
|
Protocol |
EPC C1 GEN2 / ISO18000-6C |
|
|
Antenna |
Circular Polarized Antenna (3dBi) |
|
|
Power |
1W (30dBm, support +5~+30dBm adjustable) |
|
|
2W Optional (33dBm, for Latin America, etc.) |
||
|
Max Read Range |
Impinj E710 chip:30m (Impinj MR6 tag, size 70 x 15mm)28m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
|
|
Impinj R2000 chip:25m (Impinj MR6 tag, size 70 x 15mm)26m (Impinj M750 tag, size 70 x 15mm) 25m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
||
|
Fastest Read Rate |
1150+ tags/sec |
|
|
CommunicationMode |
Pin Connector / Bluetooth |
|
|
UHF3 (Optional, SF510 UHF Built-in) |
||
|
Engine |
CM-5N module based on Impinj E510 |
|
|
Frequency |
865-868 MHz / 920-925 MHz / 902-928 MHz |
|
|
Protocol |
EPC C1 GEN2 / ISO18000-6C |
|
|
Antenna |
Circular polarization (-5 dBi) |
|
|
Power |
1 W (+5dBm to +30dBm adjustable) |
|
|
Max Read Range |
2.4m (Impinj MR6 tag, size 70 x 15mm)2.6m (Impinj M750 tag, size 70 x 15mm)2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
|
|
* Ranges are measured in the open outdoors and low interference environment, andrate is measured in a laboratory low interference environment, they are affected by tags and environment.* built-in UHF version does not support pistol |
||
-
