HANDHELD KEYBOARD PDA
Model No：SF3510
● 4.2 inch HD screen(720*1280IPS)
● High Performance CPU MTK6769, Octa -core 2.0GHz
● Android 13 OS, Big Memory 6GB+64GB
● 1D/2D Barcode scanning, Wifi/4G/Bluetooth support
● Rear 20MP HD Camera
● Hot swap support
● Rugged Industrial-grade protection, IP67 Standard
● GPS, Galileo, Glonass, Beidou support
-
ANDROID 13
-
OCTA-CORE 2.0GHz
-
4.2 INCH IPS DISPLAY
-
3.8V/5200mAh
-
GPS, Glonass, Beidou support
-
1D/2D BARCODE SCANNING
-
NFC SUPPORT 14443A /B protocol
-
IP66 standard
-
5MP +20MP HD Camera
-
6+64GB
SFT SF3510 Handheld Keyboard PDA with Android 13OS and high-performance processor Octa-core 2.0 GHz, 6+64GB, Using the new MTK6769 platform, equipped with the ARM Cortex -A75 core, the performance is increased by 100% and the processing speed is 3 times better than of peers. It has immensely diverse functionality features for 1D/2D barcode scanning, NFC, and dual band 2.4GHz/5Ghz, big capacity battery of 5200mAh, and characteristic rugged robustness of IP67 standard which works in harsh circumstances.
SF3510 is the ideal PDA to be extensively deployed in different fields like logistic, outdoor application, healthcare, census, parking system, inventory, warehouse scanning and ticket system.
SFT Warehouse barcode scanner SF3510 is 4.2 Inches display with 720*12800 resolution; Portable economic design with keyboard for physical easy operation.

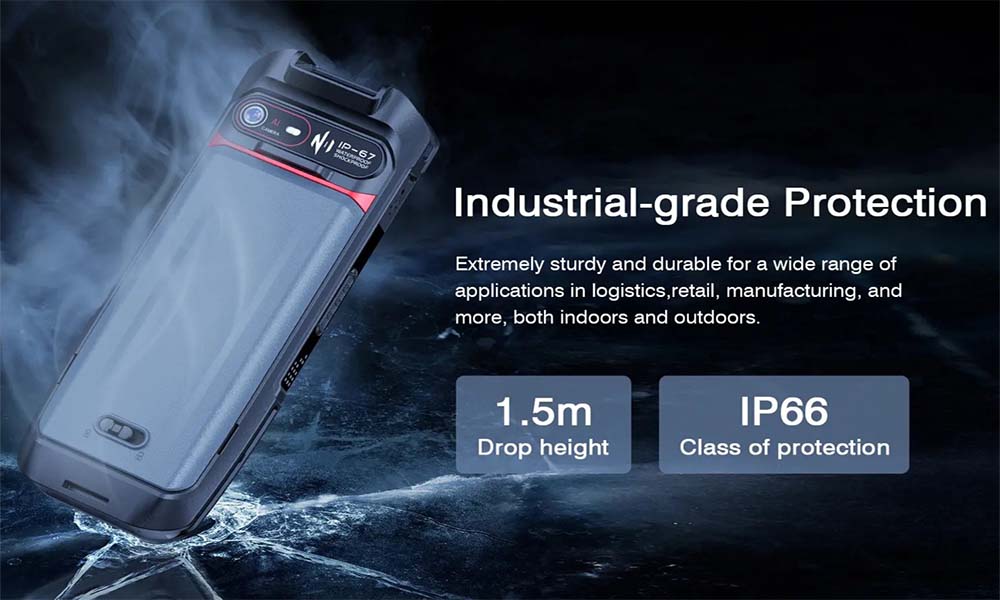

Industrial android PDA SF3510 IP67 Rugged Protection, water and dust proof; Withstanding 1.5 M drop testing. Despite Heat and Cold, the device could work under the temperate -20°C to 55°C, super protection in harsh environment.
Up to 5200 mAh rechargeable and replaceable battery satisfy your whole day work.
Also supports docking charging and hot swap.
SFT Handheld barcode terminal SF3510, high performance scanning head, fast speed 1D and 2D barcode scanner built-in (Honeywell, Zebra or Newland), support bending folds, stains, screen codes and so on.
SF3510 Mobile computer with Built-in high sensitive NFC reader supports protocol ISO14443A/B Its high security, stable and connectivity.
SFT 4G Android barcode PDA SF3510 with 5MP+20MP HD Camera auto focus, flash and anti-shake, temperature measurement scanner as optional.
Widely used for parking, ticket system, restaurant, retail store, Census etc
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
Smart Handheld PDA
SF3510
4.2-inch HD screen · High-speed octa-core ·
4G full Netcom
| Product Specifications | |
| Performance | |
| Octa-core | |
| CPU | MT6769 Octa-core 64-bit 2.0GHz high-performance processor (2 ARM®Cortex-A75 cores +6 ARM®Cortex-A55 cores) |
| RAM+ROM | 6GB+64GB |
| System | Android 13 |
| Data Communication | |
| WLAN | Dual-band 2.4GHz / 5GHz,Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
| WWAN | 2G:GSM（850/900/1800/1900MHz） |
| 3G:WCDMA（850/900/1900/2100MHz） | |
| 4G:FDD:B1/B3/B4/B7/B8/B12/B20TDD:B38/B39/B40/B41 | |
| Bluetooth | Support Bluetooth5.0+BLE,transmission distance 5-10 meters |
| GNSS | Support GPS,Galileo, Glonass, Beidou |
| Physical Specifications | |
| Dimensions | 162 mm×64.8 mm×25.9mm（The thinnest） |
| Weight | ＜300g (Depends on device function configuration） |
| Display | 4.2″ IPS color display,resolution 720×1280 |
| TP | Supports multi-touch |
| Battery capacity | Rechargeable polymer battery (3.8V 5200mAh) |
| Standby time ＞ 350 hours | |
| Working time ＞12 hours | |
| Charging time < 3 hours, use standard power adapter and data cable | |
| Built-in spare battery, hot-swappable | |
| Expansion Card slot | NANO SIMx2,TF card ×1, SIM card ×1（Optional ） |
| Communication interface | Type-C 2.0 USBx1,Support OTG function |
| Audio | Speaker (loudness >95db), microphone, Receiver |
| Keypad | Total 25 keys, 22 keys on the front, front keys: 0~9 numeric keys,. Key, space key, primary scan key, arrow key ×4, Fn switch key, Aa Case switch key, delete key, EN confirm key, return key;Side Keys: Side power key, scan key ×2 |
| Sensors | Gravity sensor, light sensor, distance sensor |
| Language/Input Method | |
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Chinese, English, Korean, Japanese, Malaysian,etc. |
| Data Collection | |
| Barcode Scanning（Standard） | |
| 2D Scanning engine | N6602-W2 |
| 1D Symbologies | Code128（ISBT 128,AIM 128,GS1 128),EAN-13,EAN-8,UPCE0,UPCE1,UPC-A,ISBN,ISSN,Code11,Interleaved 2 of 5,Code39,Code93,Code32,Codabar,Matrix 2 of 5,Industrial 25,IATA25,GS1 DataBar, GS1 DataBar Limited,GS1 DataBar Expanded,MSI Plessey,Plessey,Composite,etc. |
| 2D Symbologies | QR,Micro QR,Data Matrix,PDF417,Micro PDF417,Aztec,Maxicode,Dotcode,Composite,HanXin,etc. |
| Camera（Standard） | |
| Rear camera | 20MP camera, support autofocus, flash, anti-shake, macro shooting |
| Front camera | 5MP color camera |
| NFC（Standard） | |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm-5cm |
| User Environment | |
| Operating temperature | -20℃ – 55℃ |
| Storage temperature | -40℃ – 70℃ |
| Environment humidity | 5%RH–95%RH(no condensation) |
| Environment humidity | temperature range, 6 sides can withstand a height of 1.5 meters,falling to the marble. |
| Rolling test | 0.5m continuous rolling, 1000 times |
| Sealing | IP67 |
| Accessories | |
| Standard | Adapter, Data cable, Protective film, Instruction manual |
-
