INDUSTRIAL ANDROID TABLET
SF106
● Android 10, Qualcomm OCTA-CORE 2.4GHz
● Fingerprint and Iris Recognition
● IP68 Standard
● Large Battery Capacity 3.7V/10000mAh
● 5G Network Connection
● UHF RFID Reading and Writing
● Honeywell &Zebra 1D/2D Barcode Reader for data collection
-
ANDROID 12
-
OCTA-CORE 2.4
-
10.1 INCH DISPLAY
-
3.7v/10000mAh
-
UHF RFID
-
BARCODE SCANNING
-
NFC SUPPORT 14443A protocol
-
4+64GB
-
13MP Auto-focus
-
GPS
-
Fingerprint Identification * Facial & Iris (As Optional)
-
IP68 Standard

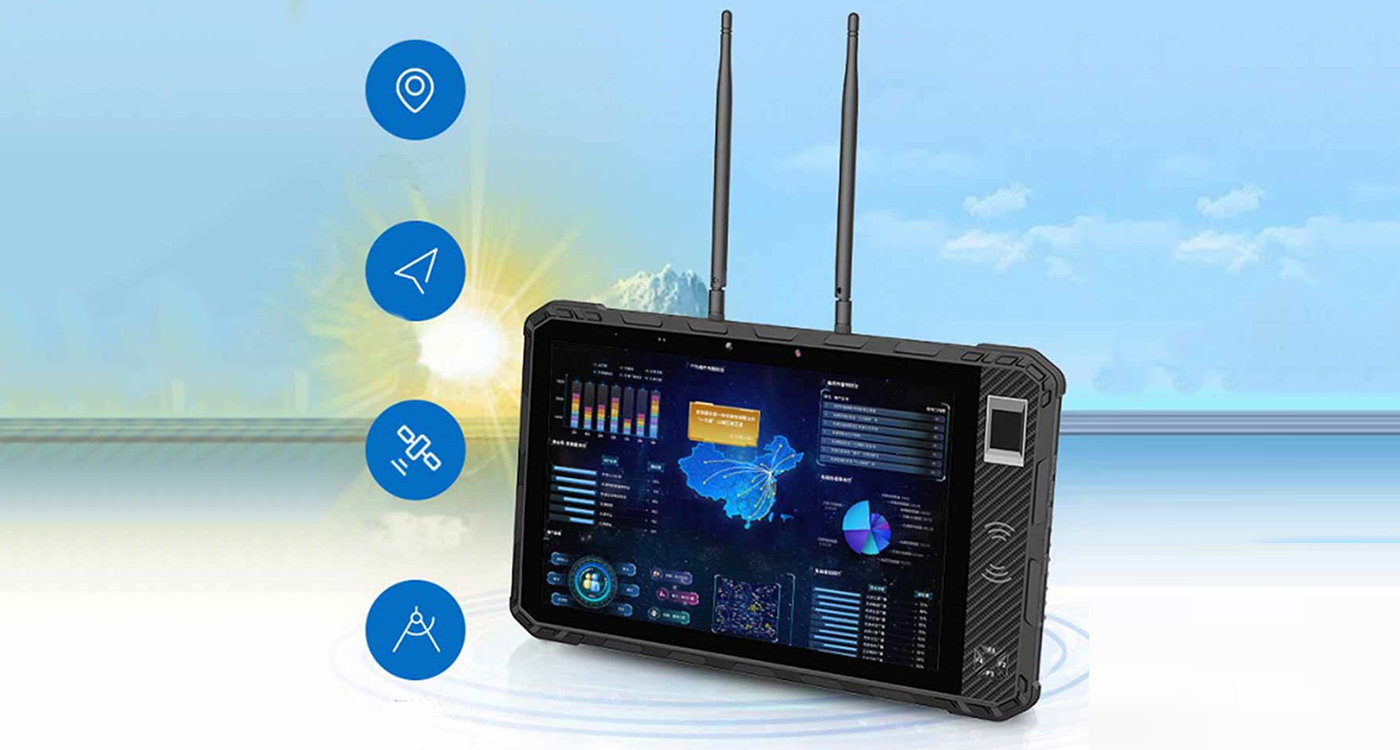

SF106 UHF Tablet is high performance terminal with Android 10.0 OS, Octa-core processor(4+64GB/6+128GB), 10.1 Inch HD large screen, IP 68 rugged Military tablet with powerful battery 10000mAh, 13MP camera, Built in FBI Fingerprint sensor, facial and Iris recognition, EKYC Census Fingerprint Scanner and widely used for Telco Sim Card Registration, Industrial filed, Mobile Time Attendance Etc.
Industrial IP68 protection standard，high strength industrial material, water and dust proof. Withstanding 1.5 meters drop without damage.
Up to 10000mAh rechargeable and replaceable battery satisfy your whole days work without interruption
Pag pin function for easy PPT talking on vehicles.
FBI certified fingerprint module as optional, comply with ISO19794-2/-4, ANSI378/381 and WSQ standard; also combined with facial recognition, making the authentication much safe and convenient.
Working temperate -20°C to 70°C suitable working for harsh environment.
Built-in GPS，optional Beidou positioning and Glonass positioning, providing high precision safety information at any time, supports centimeter position.
Efficient 1D and 2D barcode laser barcode scanner (Honeywell, Zebra or Newland) built-in to enable decoding different kinds of codes with high accuracy and high speed（50times/s）.
3D depth camera, single of binocular facial recognition support wider view.
Dual speaker design for outer door.
Optional cradle for quick charging, RJ45, Type A and DB9 function.
Different color design for army usage.
SF106 also widely used in mining, census, electric patrol, Military, public transportation etc.
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
| No | Name | Description |
| 1 | Ultra-high frequency RFID read/write area |
Radio Frequency signal sending and receiving area |
| 2 | Buzzer | Sound indication |
| 3 | USB interface |
Charge and communication port |
| 4 | Function button | Command button |
| 5 | Switch button on/off | Power on or off button |
| 6 | Bluetooth status indicator | Connection status indication |
| 7 | Charging/p ower indicator | Charging indicator/remaining battery indicator |
| Item | Specifications | |
| System | Based on Android OS, and can provide SDK | |
| Reliability | MTBF (Mean Time Between Failures)：5000 hours | |
| Safety | Support RFID encryption module | |
| Protective Grade | Drop | Resistance to 1.2m Natural Drop |
| Protective Grade | Waterproof, dustproof IP 65 | |
| Communication mode | Bluetooth | Support Bluetooth 4.0, cooperate with APP or SDK to realize user’s information exchange |
| Type C USB | Data Communication by USB Connection | |
| UHF RFID reading |
Working frequency | 840-960MHz（Customized on demand frequency） |
| Support Protocol | EPC C1 GEN2、ISO 18000-6C or GB/T29768 | |
| Output Power | 10dBm-30dBm | |
| Reading distance | Effective reading distance of standard white card is 6 meters | |
| Working Environment | Working temperature | -10℃～+55℃ |
| Storage temperature | -20℃～+70℃ | |
| Humidity | 5%～95% no condensation | |
| Indicator | Charging Electric quantity Tricolor indicator | When full power, the green indicator is always on; when part of the power, the blue indicator is always on; when low power, the red indicator is always on. |
| Bluetooth Connection Status Indicator | Bluetooth status is unpaired while flash is slow; Bluetooth status is paired when flash is fast. |
|
| Battery | Battery capacity | 4000mAh |
| Charging current | 5V/1.8A | |
| Charging time | Charging time is about 4 hours | |
| External Discharging | By identifying type C OTG line, external discharge can be realized. | |
| Physical | I/O | Type C USB port |
| Key | Power key, backup key | |
| Size/Weight | 116.9mm×85.4mm×22.8mm/260g | |
-
