MOBILE BARCODE SCANNER
SF405
● 4 Inch IPS High-Resolution Display
● Android 12, Octa-core 2.0GHz
● Super Thin Design, Easy for Carrying.
● IP67 Standard
● 1D/2D Barcode Scanner
● 3GB RAM+ 32GB ROM/4GB RAM+64GB ROM
-
ANDROID 12
-
OCTA-CORE 2.0GHz
-
4 INCH DISPLAY
-
3.7v/3500mAh
-
BARCODE SCANNING
-
NFC SUPPORT 14443A protocol
-
3+32GB/4+64GB
-
13MP Auto-focus

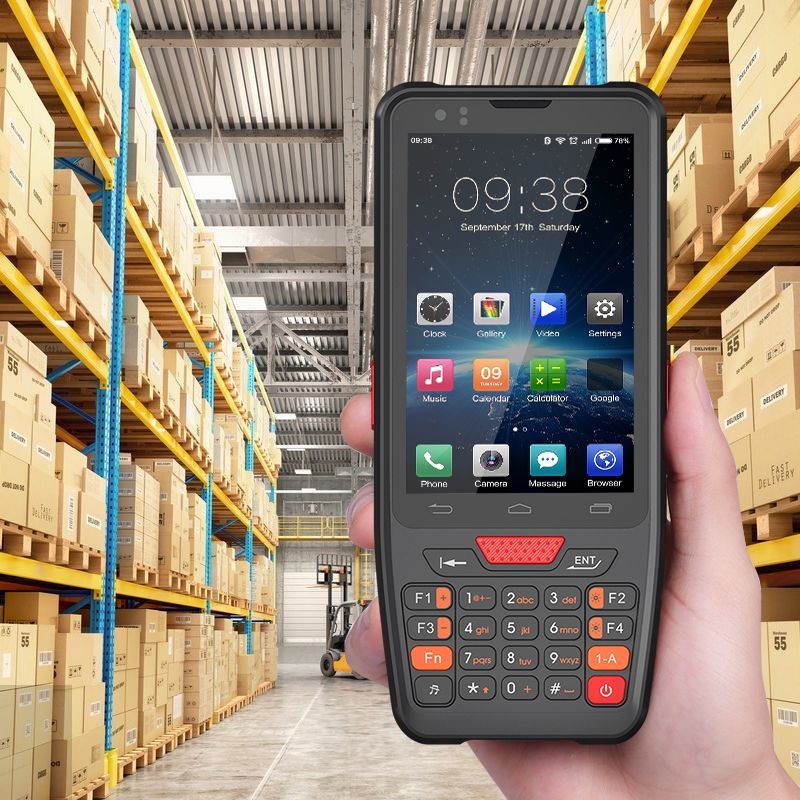

SF405 Mobile Barcode Scanner (Super thin size) is an industrial rugged mobile scanner with high performance. Thin and Simple design. Android 12 OS, Octa-core processor,
4 inch IPS (800*480) touch screen, 3500 Mah powerful battery, 13MP camera, Bluetooth 5.0. 1D /2D barcode scanner, widely used in logistic, warehouse inventory, Healthcare, Manufacturing Industry.
4 Inches High-resolution display, Full HD 800X480; Super thin and pocket design. Industrial super sensitive capacitive screen; Super thin and pocket design. Total weight around 240grams including battery, carry zero burden, more convenient and operation.
3500MAH removable large capacity lithium battery, can be replaced at any time, can work outdoors for a long time; Supports 9V fast charge to achieve full charge in 1 hour.
Industrial IP67 design standard, water and dust proof. Withstanding 1.5 meters drop without damage. working temperature 20~ 50°C.
Efficient 1D and 2D barcode laser scanner (Honeywell, Zebra or Newland) built-in to enable decoding different kinds of codes with high accuracy and high speed.
Built in NFC module (Chip model: NXP557) supports ISO14443A/14443B/15693 protocol, high effective and sensitive for quick data transmission.
Optional Built in high sensitive RFID UHF module with high uhf tags reading up to 200tags per second. Suitable for warehouse inventory, animal husbandry, foresting, meter reading etc
Full network 4G + dual-band Wi-Fi + Bluetooth support.
Safety packing with complete accessories.
Widely application in Logistic, warehouse inventory, transportation, healthcare, agriculture fields.
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
| No | Name | Description |
| 1 | Ultra-high frequency RFID read/write area |
Radio Frequency signal sending and receiving area |
| 2 | Buzzer | Sound indication |
| 3 | USB interface |
Charge and communication port |
| 4 | Function button | Command button |
| 5 | Switch button on/off | Power on or off button |
| 6 | Bluetooth status indicator | Connection status indication |
| 7 | Charging/p ower indicator | Charging indicator/remaining battery indicator |
| Item | Specifications | |
| System | Based on Android OS, and can provide SDK | |
| Reliability | MTBF (Mean Time Between Failures)：5000 hours | |
| Safety | Support RFID encryption module | |
| Protective Grade | Drop | Resistance to 1.2m Natural Drop |
| Protective Grade | Waterproof, dustproof IP 65 | |
| Communication mode | Bluetooth | Support Bluetooth 4.0, cooperate with APP or SDK to realize user’s information exchange |
| Type C USB | Data Communication by USB Connection | |
| UHF RFID reading |
Working frequency | 840-960MHz（Customized on demand frequency） |
| Support Protocol | EPC C1 GEN2、ISO 18000-6C or GB/T29768 | |
| Output Power | 10dBm-30dBm | |
| Reading distance | Effective reading distance of standard white card is 6 meters | |
| Working Environment | Working temperature | -10℃～+55℃ |
| Storage temperature | -20℃～+70℃ | |
| Humidity | 5%～95% no condensation | |
| Indicator | Charging Electric quantity Tricolor indicator | When full power, the green indicator is always on; when part of the power, the blue indicator is always on; when low power, the red indicator is always on. |
| Bluetooth Connection Status Indicator | Bluetooth status is unpaired while flash is slow; Bluetooth status is paired when flash is fast. |
|
| Battery | Battery capacity | 4000mAh |
| Charging current | 5V/1.8A | |
| Charging time | Charging time is about 4 hours | |
| External Discharging | By identifying type C OTG line, external discharge can be realized. | |
| Physical | I/O | Type C USB port |
| Key | Power key, backup key | |
| Size/Weight | 116.9mm×85.4mm×22.8mm/260g | |
-
